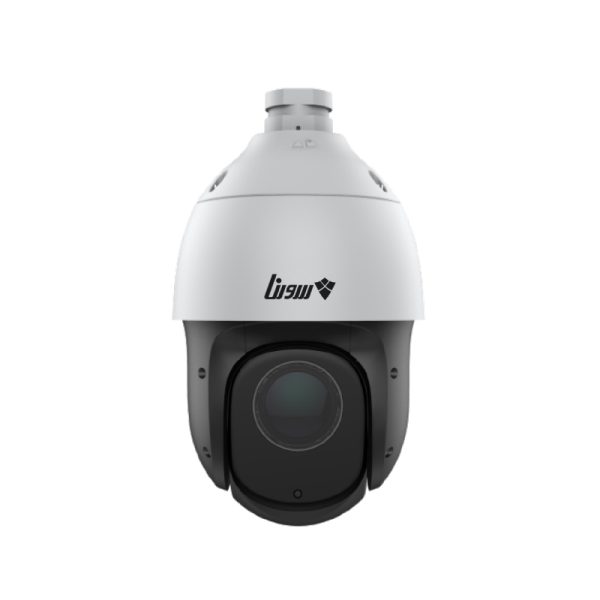

Sorena SR-2023P/I

دسته بندی: دوربین اسپید دام (PTZ)

KEY FEACTURE

·Up to 1920X1080@30fps

·Optical zoom: 23x

·Smart IR, IR Range: 150m

·S+265/H.265/H.264/M-JPEG

·Intelligent monitoring

·Support Human/Vehicle Classification

·Plugin Free

·IP66

Camera

Image Sensor

1/2.8″ CMOS

Min. Illumination

Color: 0.001lux@ (F1.6, AGC   ON), B/W:0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

IR Cut Filter with Auto Switch

WDR

120dB

S/N

>42dB

Lens

Focal Length

5mm~115mm

Optical Zoom

23X

Digital Zoom

N/A

Zoom Speed

5S

Aperture Range

F1.5~3.0

Field of View

Horizontal field of   view: 55.8°  (w)~3.2° (t)
Vertical field of view: 32.2° (w)~1.8° (t)
Diagonal field of view:61°(w)~3.64°(t)

Focus Control

Auto, semi-auto, manual

Iris Control

Auto

Close Focus Distance

1000mm~1500mm

DORI Distance

Detect:1351m         Observe:536m     Recognize:270m        Identify:135m

Pan & Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s

Tilt Range

-16°~90° (Default -3°~90°)

Tilt Speed

Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s

3D Position

Yes

Preset

500

Cruise

16, up to 32 presets per cruise

Scan

8

Pattern

8, each with 600s memory or 1000 orders

Scheduled Task

Preset, Cruise, Scan, Pattern

North Point

Yes (Manual setting)

Power-off Memory

Yes

Preset Freezing

N/A

Illuminator

IR LEDs

7

IR Distance

Up to 150m

Wavelength

850nm

IR Irradiation Angle

Adjustable by Zoom

White LEDs

N/A

White light Distance

N/A

Laser

N/A

Laser Distance

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

1920×1080@30fps

Main Stream

PAL:25fps(1920×1080,1280×720,640×480,704×576)
NTSC:30fps(1920×1080,1280×720,640×480,704×480)

Sub Stream

PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360)

Third Stream

PAL:25fps(352×288)
NTSC:30fps(352×240)

BLC

Yes

HLC

Yes

AGC

Yes

Noise Reduction

2D/3D

White Balance

Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium   lamp/Incandescent lamp/Locked white balance

ROI

7 Dynamic Areas for Both Main   and Sub Stream

EIS

N/A

OSD

16×16, 24×24,32×32, 48×48,   64×64, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Defog

Digital

Flip

Yes

Regional Exposure

Yes

Regional Focus

Yes

Demist

Yes

Feature

Alarm Trigger

Motion Detection; Mask Alarm; N/A; Disk Full; Disk R/W Error; IP Address   Conflict; MAC Address Conflict; FTP Server Exception; Event Input, Event Output

Linkage Method

send email; trigger   sound; trigger warm light; trigger recording; trigger capture; notify surveillance   center

Video Analytics

Human/Vehicle Classification; Tripwire; Double   Tripwire; Perimeter; Object Abandon; Object Lost; Heatmap;  Loitering;Running;N/A;People Counting;Crowed;Safety Helmet Detection;On Duty   Detection;  Video Abnormal;Audio Abnormal

Early Warning (EW)

N/A

Auto-Tracking

N/A

Face Mode

N/A

Face Capture Performance

N/A

Network



ANR

Auto store video in SD card when NVR disconnected, and upload video to   NVR when resumed connection(Only Support Sorena ANR NVR)

Protocols

HTTP;HTTPS;TCP/IP;UDP;UPnP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4;IPv6;PPPOE;SSH;Unicast;Multicast;RTP;SRTP;RTSP;FTP;SFTP

System Compatibility

ONVIF Profile S/T/G/M; CGI; Milestone; RTMP

Remote Connection

≤2

User/Host

Up to 32 users. 4 user levels

Client

Easy7 Smart Client

Mobile Client

EasyLive Plus

Web

IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio I/O

1/1

Alarm I/O

1/1

Built-In Speaker

N/A

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up   to 512 GB

RS-485

N/A

BNC

N/A

Wiper

N/A

Electronic Compass

N/A

GPS/BDS

N/A

General

Operating Temperature

-30℃~65(IR   OFF)      -30℃~40(IR ON)

Operating Humidity

0-95%

Storage Temperature

-30℃~65

Storage Humidity

0-95%(non-condensing)

Power Supply

DC12V±10%/POE+(IEEE802.3 at)

Power Consumption

7.3W(IR OFF), 17.6W(MAX)

Protection

IP66 , TVS 6000V lightning   protection, surge protection and voltage transient protection

Heater

N/A

Material

ADC 12, PC+ABS

Boundary Dimensions

161(D)276(H)mm

Package Dimensions

260(L)260(W)465(H)mm

GrossWeight

3.7kg

NetWeight

2.1kg
