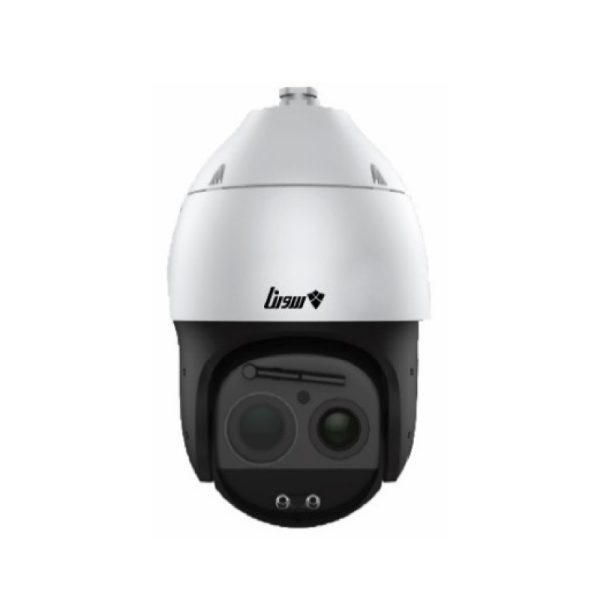

Sorena SR-1663P-PA

دسته بندی: دوربین اسپید دام (PTZ)

KEY FEACTURE

·Panoramic Camera

·Four 1/1.8″ CMOS

·Up to  5520×2400@30fps

·Horizontal: 180°, Verticle:85°

·Min. illumination Color: 0.0004Lux@F1.0

·Support region clipping

·Support distortion correction

·Detail Camera

·Auto-Tracking Early Warning (AEW)

·Up to  2560*1440@30fps

·Optical zoom: 63x, digital zoom 16x

·Support 3d position

·Laser Distance: 500m

·Auto Wiper

·Built-in Wiper

·IP66

Camera

Image Sensor

Panorama: 1/1.8″   CMOS, Detail: 1/1.8″ CMOS

Signal System

PAL/NTSC

Min. Illumination

Panorama: Color: 0.0004Lux@(F1.0, AGC ON), B/W: 0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

IR Cut Filter with Auto Switch

Optical Zoom

Detail: 63x

Digital Zoom

Detail: 16x

Lens

Focal Length

Panorama: 2.8mm; Detail:   5.7-359mm

Zoom Speed

<5s

Field of View

Panorama:   Horizontal: 180°,   vertical: 85°

Detail: Horizontal: 60° (w)~1.5° (t), vertical:35° (w)-0.9°(t)

Aperture Range

Panorama: F1.0; Detail: F1.6 ~ F5.0

Focus Control

Auto/Manual

Iris Control

Auto

Close Focus Distance

Detail:1 m–3 m

Pan & Tilt

Pan Range

Detail: 0°~360°

Pan Speed

Panorama: Pan Manual Speed: 0.1°~200°/s°/s, Pan Preset Speed: 240°/s

Tilt Range

Detail: -21°-90° (Auto flip)

Tilt Speed

Detail: Pan Manual Speed: 0.1°~120°/s,   Pan Preset Speed: 180°/s

3D Position

Yes

Preset

500

Preset Accuracy

±0.1°

Cruise

16, up to 32 presets per cruise

Scan

8

Pattern

8, each with 600s memory or 1000 orders

Scheduled Task

Preset, Cruise, Scan, Pattern, Alarm output

Park Action

Yes

Power-off Memory

Yes

Illuminator

IR LEDs

11

IR Distance

Up to 300m

IR Irradiation Angle

Adjustable by Zoom

White LEDs

2, support white/blue/red light flash

Laser

6, Wavelength 850nm

Laser Distance

Up to 500m

IR LEDs

11

IR Distance

Up to 300m

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

Panorama: 5520×2400;Detail:   2560×1440

Main Stream

Panorama:
PAL:25fps(5520×2400,4096×1800,3840×1680,2784×1200)
NTSC:30fps(5520×2400,4096×1800,3840×1680,2784×1200)
Detail:
PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)

Sub Stream

Panorama:
PAL:25fps(2048×896,1280×560,704×320)
NTSC:30fps(2048×896,1280×560,704×320)
Detail:
PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704X480,704X240,352X240,640×360)

Third Stream

Panorama:
PAL:25fps (1280×560)
NTSC:30fps (1280×560)
Detail:
PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:30fps(704X480,704X240,352X240,640×480)

BLC

Yes

HLC

Yes

WDR

Panorama :Digital; Detail: 120dB

Image Stabilization

Yes

Defog

Digital

White Balance

Yes

AGC

Yes

Noise Reduction

2D/3D

ROI

7 Dynamic Areas for Both Main and Sub Stream

Picture Overlay

Yes

Privacy Mask

Yes

Demist

Yes

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Flip

Yes

OSD

Panorama: 16×16, 24×24,32×32,   48×48, 64×64, 96×96, 128×128, adaptable size, letters such as Week, Date, Time, Total 5 Region
Detail: 16*16/24*24/32*32/48*48/64*64/72*72/96*96, adaptable size, letters such as Week, Date, Time, Total 5 Region

Feature

Alarm Trigger

Event Input, Event Output, Mask   Alarm, Disk Full, Disk R/W Error, IP Address Conflict,

MAC Address Conflict, FTP Server Exception

Video Analytics

Panorama: Tripwire, Double Tripwire, Heatmap

Detail: Tripwire, Double Tripwire, Perimeter, Object  Abandon, Object Lost, Loitering, Running, Parking, Heatmap, crowed, People Counting,

 On Duty Detection, Video Abnormal, Audio Abnormal, Face Capture, Human/Vehicle Classification

Early Warning (EW)

Yes

Auto-Tracking

Yes

Face Detection and Analytics



Operating Mode

Face capture, Intelligent monitoring

Face Detection Performance

Detects up to 32 faces at the   same scene

Face Exposure Brightness

Default 35, 1~100 brightness optional

Min. Face Pixel

29~2560 optional

Network



Protocols

HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/EasyDDNS/NTP/SMTP/SSL/802.1X/

QoS/IPv4/IPv6/PPPOE/Unicast/Multicast/RTMP/RTSP/NFS/FTP

System Compatibility

ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P

ANR

Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection

(Only   Support Sorena ANR NVR)

Remote Connection

≤7

User/Host

Up to 32 users. 4   user levels

Web

IE, Firefox, Edge, Safari, Chrome

Interface

Communication Interface

1 RJ45 100M/1000M  self adaptive Ethernet port

Audio I/O

1/1

Alarm I/O

8/2

Built-In Speaker

Yes

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up to 512 GB

RS-485

Yes

BNC

Yes(Debugging use)

Wiper

Yes

Electronic Compass

Yes

GPS/BDS

N/A

General

Protection

IP66, TVS 6000V lightning   protection, surge protection and voltage transient protection

Operating Conditions

-40°C~70°C (IR   OFF), -40°C~40°C (IR ON), 0-95%RH

Power Supply

DC36V±25%

Power Consumption

76W MAX

Heater

Yes

Material

ADC 12

Package/Boundary Dimensions

565mm(L)*485mm(W)*750mm(H) /358mm(L)*358mm(W)*568mm(H)

Gross/Net Weight

21.7kg (14.8kg)

Protection

IP66, TVS 6000V lightning   protection, surge protection and voltage transient protection

Web Client Language

17 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/   Turkish/ Russian/ Thai/French/ Polish/ Dutch/ Hebraism/ Arabic/ Vietnamese/   German/ Ukrainian

Operating Conditions

-40°C~70°C (IR   OFF), -40°C~40°C (IR ON), 0-95%RH

Power Supply

DC36V±25%
